Products description

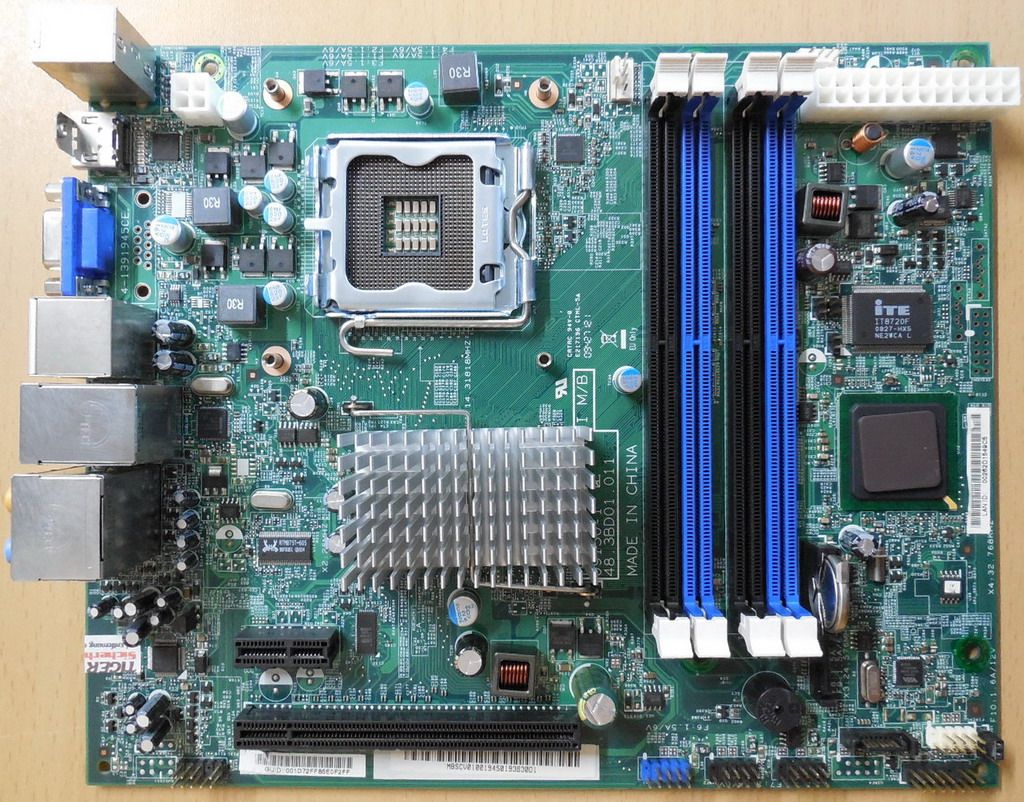

Acer Aspire X3812 Mainboard DIG43L Eup DDRII 48.3BD01.011 Sockel 775 VGA
Technische Daten
CPU / Processor
Intel® Core™2 Quad Q6600 / Q8200 / Q8300 / Q9300 / Q9400 / Q9550 / Q9650
Intel® Core™2 Duo E7400 / E7500 / E8500 / E8600
Intel® Pentium® Dual-Core E2220 / E5200 / E5300 / E5400
Intel® Celeron® E1400 / E1500 processors in the LGA775 package
FSB
1333/1066/800 MHz
Chipset
Intel® G43/G45 Express Northbridge + Intel® ICH10 Southbridge
Memory
4 x 240-Pin DIMM Steckplätze für non-ECC unbuffered DDR2 800 MHz (PC2-6400) DIMMs; Max. 8GB; Dual Channel unterstützt
VGA
Intel® G43 Express integrated Graphics
Steckplätze
1x PCI Express® x16 Slot, 1x PCI Express® x1 Slot
Onboard Audio
Realtek® ALC888S 8-channel High Defintion Audio Codec
Onboard LAN
Intel® WG82576V Gigabit Ethernet LAN 10/100/1000 Mbits
Storage
2 x SATA II 3Gb/s connectors for up to 2 SATA devices
1 x eSATA
USB
10 x USB2.0/1.1 (Rear 4 ports, Intern 3 headers for additional 6 ports)

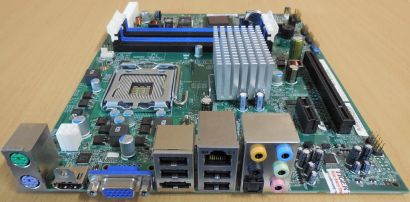

Back panel I/O
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x VGA Sub-D
1 x HDMI
1 x eSATA port
4 x USB2.0 ports
1 x Gigabit LAN port
1 x Optical S/PDIF port
8-channel Audio ports (Microphone / Line-Out / Line-In 7 / Center speaker/subwoofer / Surround L/R)
Internal connectors
2 x Serial ATA connectors
1 x 4-Pin CPU FAN connector
1 x 4-Pin System FAN connector
1 x Front Audio connector
1 x Front Panel connector
3 x USB connectors supporting 2.0 ports for up to 6 additional ports
1 x Buzzer
1 x IEEE1394 connector
1 x CMOS Jumper
1 x ATX 24-pin Power connector
1 x 4-Pin 12V CPU Power connector
Bios
SPI Flash ROM 16 MB
Form factor
Micro ATX size; ca. 244mm x 200mm
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
