Products description

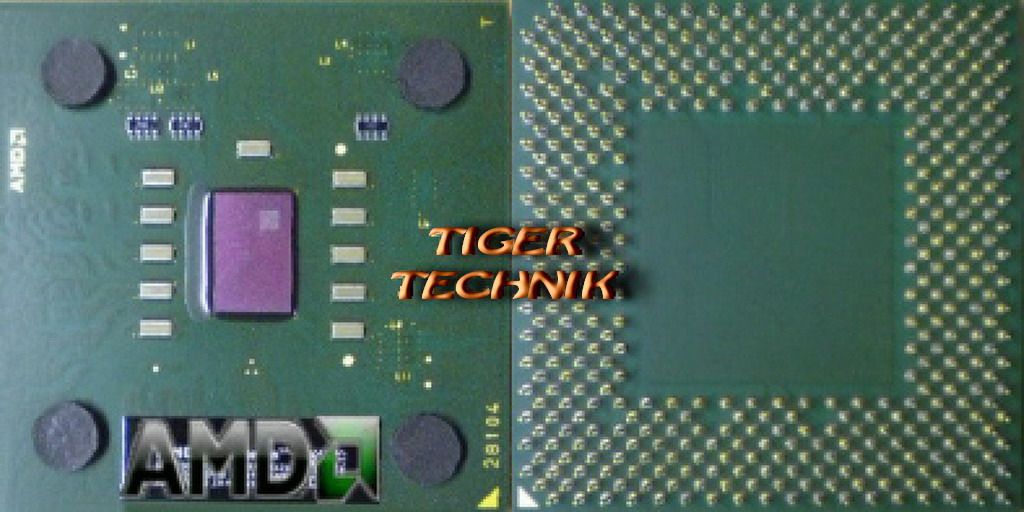

CPU Prozessor AMD Sempron 2400+ SDA2400DUT3D Sockel 462 A FSB333 grün
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Sempron |
Model number | 2400+ |
CPU part numbers | SDA2400DUT3D is an OEM/tray microprocessor; SDA2400BOX is a boxed microprocessor with fan and heatsink |
Stepping codes | BCXJB BIXJB |
Frequency | 2400+ (rated); 1667 MHz (actual) |
Bus speed | 333 MHz |
Clock multiplier | 10 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package numbers | 27648, 28104 |
Socket | Socket A (Socket 462) |
Introduction date | July 28, 2004 |
Price at introduction | $61 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Thoroughbred (Model 8) |
Manufacturing process | 0.13 micron |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB code; 64 KB data |
Level 2 cache size | Full speed on-die exclusive 256 KB |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions |
Low power features | Halt state, Stop Grant states, Sleep state, Probe state |
Electrical / Thermal parameters | |
V core | 1.6V |
Minimum/Maximum operating temperature | 0°C - 90°C |
Minimum/Typical/Maximum power dissipation | 7.9 Watt (Stop Grant mode) / 55.9 Watt / 62 Watt |
Notes on AMD Sempron 2400+ (Thoroughbred) | |
Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
