Products description

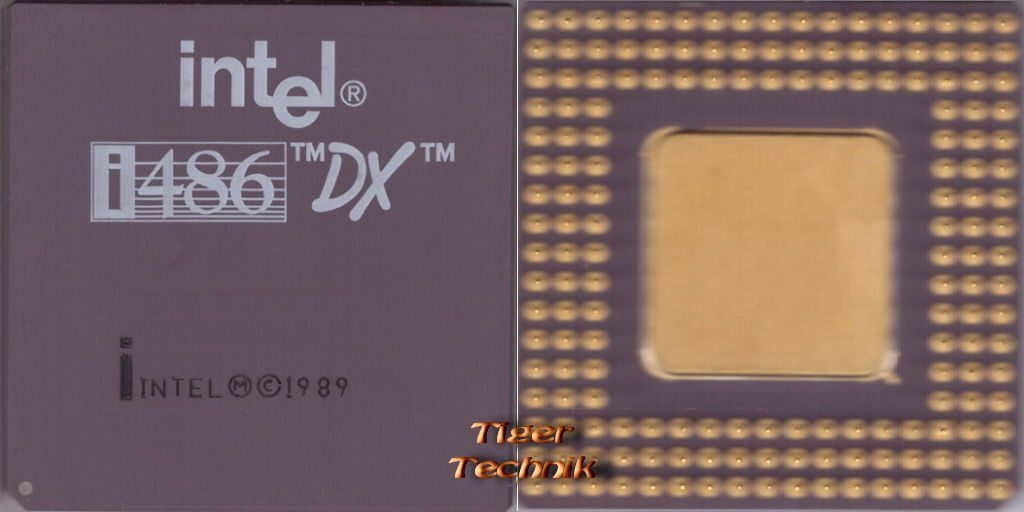

CPU Prozessor Intel i486 DX SX710 50 MHz FSB Sockel 3 A80486DX-50
Technische Daten |
| |||
Type | CPU / Microprocessor |
| ||
Family | Intel 80486 |
| ||
Part number | A80486DX-50 is an OEM/tray microprocessor |
| ||
Frequency (MHz) | 50 |
| ||
Bus speed (MHz) | 50 |
| ||
Clock multiplier | 1 |
| ||
Package type | 168-pin Pin Grid Array; 1.75" x 1.75" (4.45 cm x 4.45 cm) |
| ||
Socket | 3 |
| ||
Architecture / Microarchitecture / Other |
| |||
CPUID | 0413h |
| ||
Core voltage (V) | 5 |
| ||
Microarchitecture | i486 | |||
Manufacturing process | 1 micron CHMOS IV technology; 0.8 micron CHMOS V technology; 1.2 million transistors | |||
Data width | 32 bit | |||
Level 1 cache size | 8 KB 4-way set associative unified code and data cache | |||
Physical memory | 4 GB | |||
Virtual memory | 64 TB | |||
On-chip peripherals | Memory management unit | |||
Electrical / Thermal parameters |
| |||
V core | 5V ± 5% | |||
Minimum/Maximum operating temperature | 0°C - 85°C | |||
Typical/Maximum power dissipation | 4 Watt / 5.25 Watt | |||
Notes on sSpec SX710 |
| |||
The processor does not include SL features. Processor does not support write-back. The processor requires 1x external clock. |
|
| ||
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
