Products description

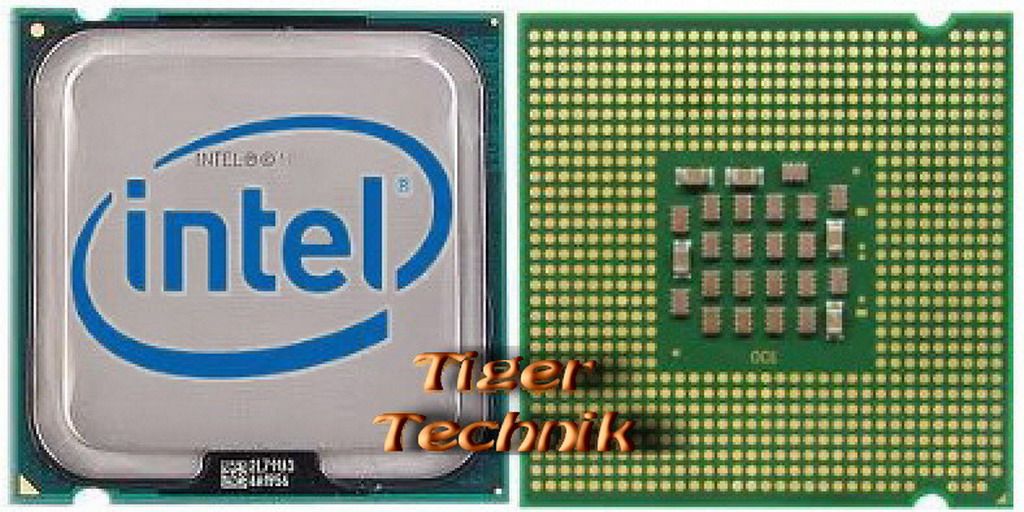

CPU Prozessor Intel Pentium 4 540J SL7PW 3.2GHz HT 800MHz FSB 1M Sockel 775
Technische Daten | |
Type | CPU / Microprocessor |
Family | Intel Pentium 4 |
Processor number | 540J |
Part number | JM80547PG0881M, BX80547PG3200EJ |
Frequency (GHz) | 3.2 |
Bus speed (MHz) | 800 |
Clock multiplier | 16 |
Package type | 775-land FC-LGA4 |
Socket type | Socket 775 (LGA775) |
Architecture / Microarchitecture / Other | |
CPUID | 0F41h |
Core stepping | E0 |
Qualification sample | Q98X |
Previous stepping | SL7J7 |
Processor core | Prescott |
Manufacturing technology (micron) | 0.09 |
L2 cache size (MB) | 1 |
Features | Execute disable bit, Hyper-Threading technology |
Core voltage (V) | 1.287 - 1.4 |
Case temperature (°C) | 67.7 |
Notes on sSpec SL7PW | |
This part also ships as a boxed processor with an unattached fan heatsink. Microprocessors with this S-Spec have multiple VIDs. This S-spec supports the 775_VR_CONFIG_04A (mainstream) guidelines for processors with Iccmax up to 78A, and VID up to 1.4V. This part has Enhanced Halt State enabled. The parts are available starting from October 1, 2004 Changes in E0 stepping: Execute disable bit, additional power management features. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
