Products description

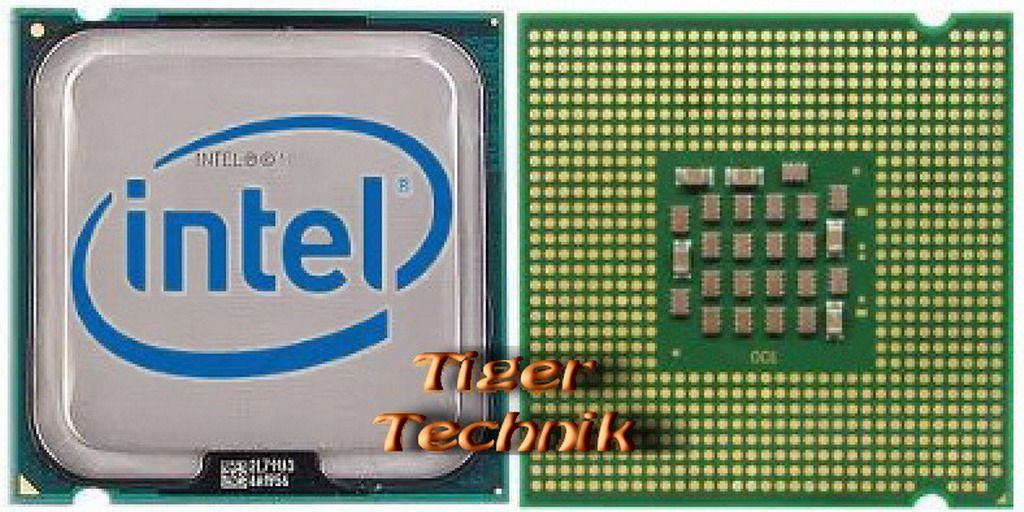

CPU Prozessor Intel Pentium Dual Core E2140 SLA93
2x 1.6GHz FSB800 1M EM64T
Technische Daten | |
Type | CPU / Microprocessor |
Family | Intel Pentium Dual-Core |
Processor number | E2140 |
Part number | HH80557PG0251M, BX80557E2140, BXC80557E2140 |
Processor markings | 1.60GHZ/1M/800/06 |
Frequency (GHz) | 1.6 |
Bus speed (MHz) | 800 |
Clock multiplier | 8 |
Package type | 775-land FC-LGA6 |
Socket type | Socket 775 (LGA775) |
Architecture / Microarchitecture / Other | |
CPUID | 06FDh |
Core stepping | M0 |
Qualification sample | QYRG |
Previous stepping | SLA3J |
Processor core | Allendale |
Manufacturing technology (micron) | 0.065 |
Number of cores | 2 |
L2 cache size (MB) | 1 |
Features | EM64T technology, Enhanced SpeedStep technology, Execute disable bit, Extended Halt state, Extended Stop Grant state, Thermal Monitor 2 |
Core voltage (V) | 1.162 - 1.312 |
Case temperature (°C) | 73.2 |
Thermal Design Power (Watt) | 65 |
Notes on sSpec SLA93 | |
The processor supports the 775_VR_CONFIG_06 guidelines for processors with TDP up to 65 Watt, and Iccmax up to 75A. The parts are available starting from Jul 23, 2007 Changes in M0 stepping: Maximum case temperature will change to 73.2°C, The CPU will return brand string "Intel(R) Pentium(R) Dual CPU, Different position and the number of capacitors on the back of the CPU. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
